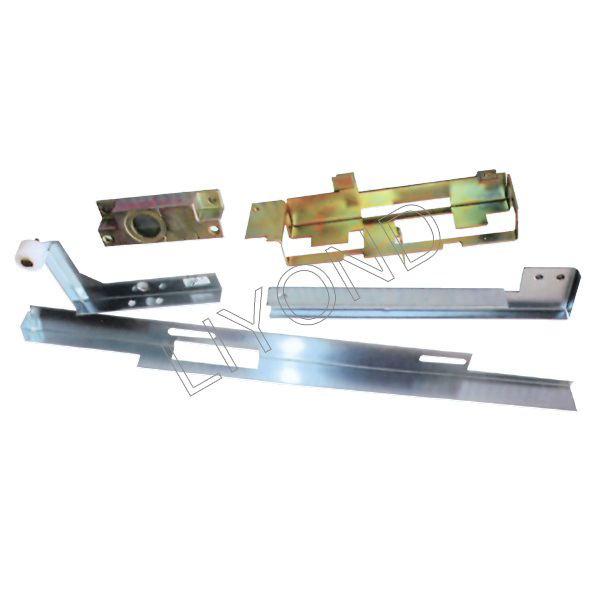

KYN61 Earthing Interlock Linkage Type

KYN61 Earthing interlock Linkage type

• Specification
• Drawing
• PDF Download

• KYN61 Earthing interlock Linkage type

  Specifications

  1.Type :fauxbar
  2.Material:iron and surface zincing
  3.OEM orders are welcome
  4.Good quality

  Description

  1.Standard material according to technical drawing

  2.OEM quality standard guaranteed

  3.KYN61 high voltage switchgear accessories

  4.Long lasting working life time

  5.Suface zincing is antioxidation and durable and without impurities

  6.Supply good service

• KYN61 Earthing interlock Linkage type



  KYN61 Earthing interlock Linkage type

  No.	Item	Code	Qty
  1	Bending plate assembly		1
  2	Back support	9YF.007.083	1
  3	Bevel gear assembly		1
  4	Bending plate	9YF.007.055	1
  5	Connecting shaft		1
  6	Connecting sleeve	9YF.007.076	3
  7	Guide bending plate	9YF.007.077	2
  8	Bending plate	9YF.007.079	1
  9	Operating shaft	9YF.007.071	1
  10	Connecting strip	9YF.007.082	1
  11	Retainer bending plate	9YF.007.081	1
  12	Operating shaft	9YF.008.072	1
  13	Bending plate	9YF.007.052	1
  14	Tension spring	8XS.288.016	3
  15	Bending plate	9YF.007.056	1
  16	Operating shaft	9YF.010.075	1
  17	Sector plate	9YF.007.050	1
  18	Plain washer	9YF.007.073	1
  19	Slide block	8XS.143.010.1	2
  20	Aluminum support	8XS.043.022.35	1
  21	Bending plate	8XS.161.059.35	1

• KYN61 Earthing interlock Linkage type

  [Download not found]
