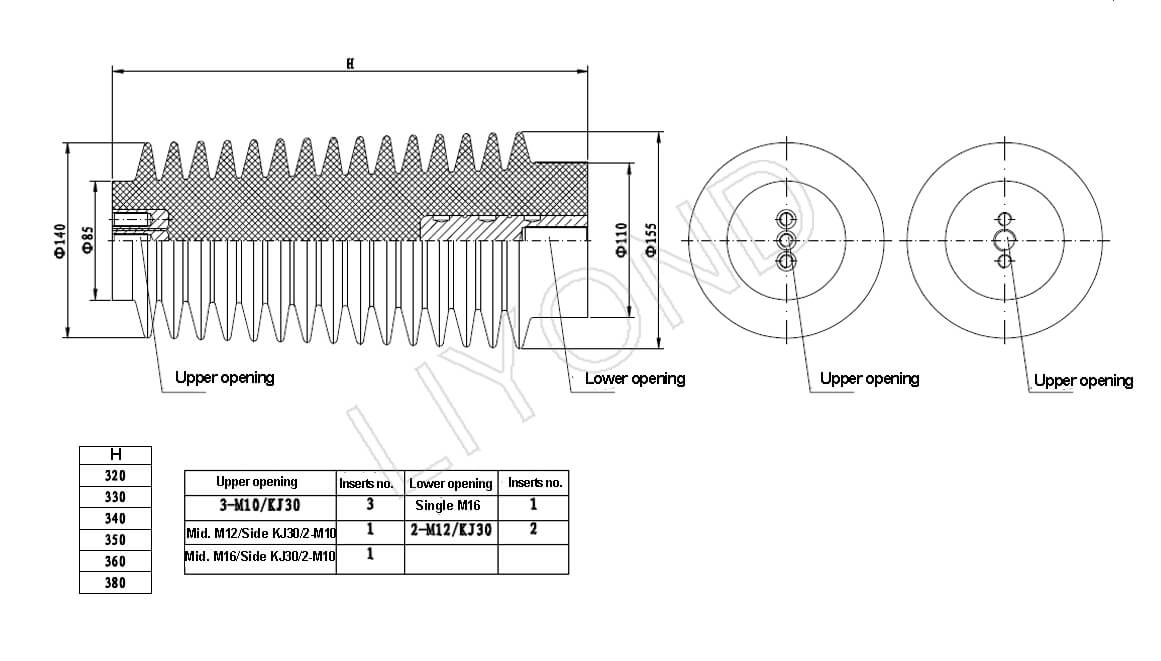

• Drawing

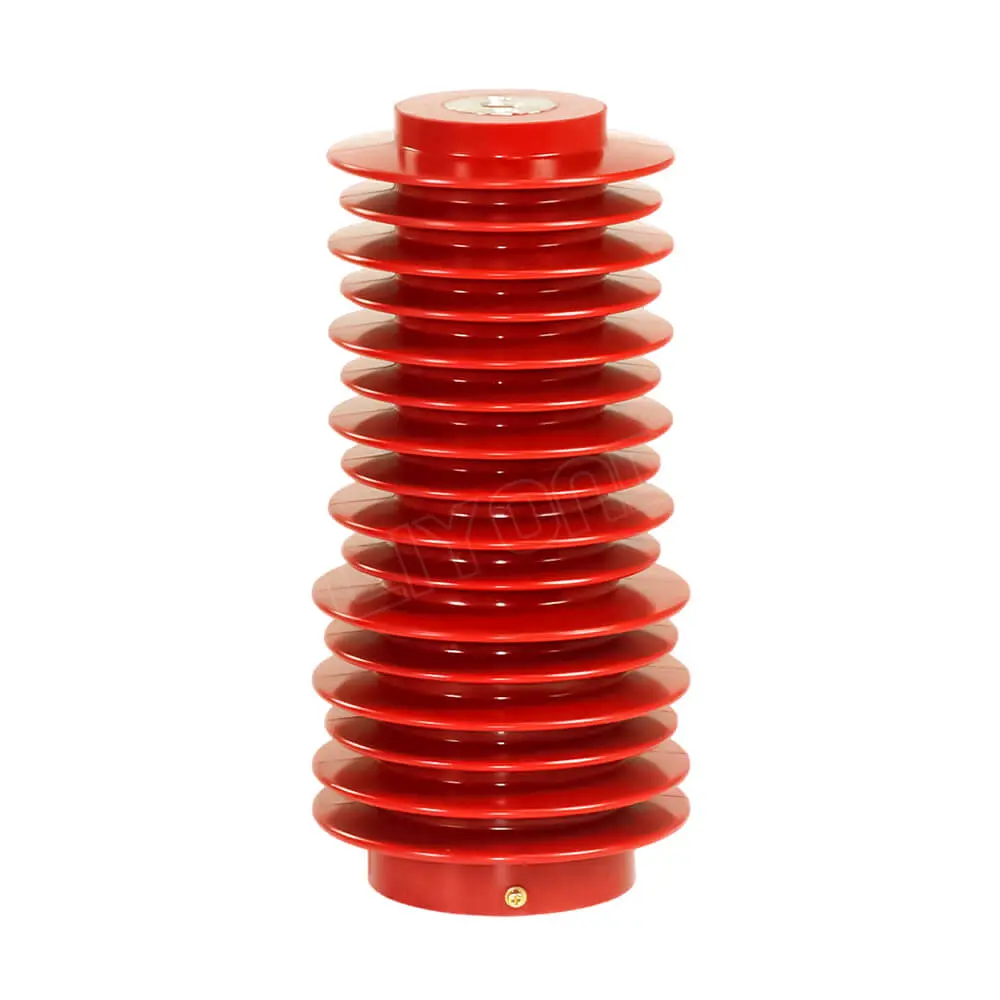

• LYC133 High Voltage Epoxy Resin Insulator Sensor 40.5kV

  Item No: LYC133

  Liyond 40.5kV Epoxy Resin Sensor is designed for high-voltage applications, offering exceptional insulation, durability, and environmental resistance. Ideal for power distribution systems, this sensor ensures reliable performance even in harsh conditions. Its compact design and advanced materials make it suitable for various installations.

  Details:

  Model Name:	LYC133/155*320–380
  Brand:	Liyond
  Type:	Insulator/Sensor
  Application:	High Voltage / Switchgear
  Rated Voltage	40.5KV
  Color:	brown, red
  Material:	Epoxy resin
  Product Certification:	CE and ISO 9001:2000
  Maximum Diameter:	155mm
  Height:	320-380mm
  Power frequency withstand voltage:	95kv/min
  Partial discharge	<10pc
  Creepage distance:	985mm
  Bending strength	15000 N

  Normal Operation Environment Condition:

  1 Altitude can’t exceed 1000m，and the altitude of plateau type can’t exceed 3000m；

  2 Surrounding temperature ranges from -10℃ to +40℃，and the daily average temperature；

  3 Daily average value of Relative humidity can’t exceed 95%，and the monthly average；

  4 There is no any dust﹑smoke﹑pollution of corrosive or flammable air﹑vapor and salt fog；

  5 There is no any frequent vibration or bumping in installation place；

  6 The product all could run in the case of dew and Ⅱ feculence condition；
