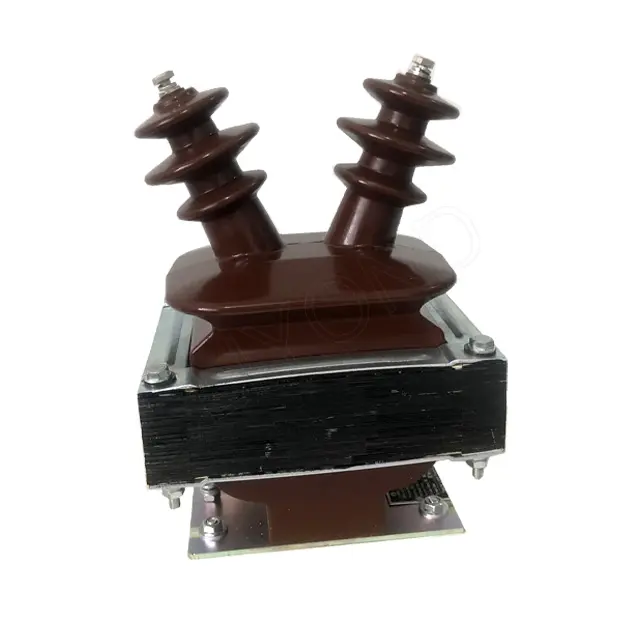

• JDZ-10Q Voltage transformer, a single-phase, indoor, dry-type fully enclosed product, single unit or a group of two when in use, V/V connection for a group of two, and V/V/V connection for a group of three. It is suitable for rated frequency 50HZ or 60HZ, rated voltage of 3kV, 6kV, 10kV power system for electric energy metering, voltage monitoring and relay protection.
  This product complies with IEC60044 and GB20840.3-2013 current transformer standards.
  Product advantages:

  1. Small size.
  2. It has good insulation and moisture resistance.
  3. Convenient installation, suitable for installation in any location.
  4. The technology is mature and the products are relatively stable.

  Environmental conditions

  1. The altitude does not exceed 3000 meters;
  2. The ambient temperature is not higher than +40℃ and not lower than -5 ℃;
  3. The relative humidity of the surrounding air is not more than 65% (20 ℃);
  4. Meet the pollution level II;
  5. No corrosive gas in the installation site



•

  Technical Parameters

  Rated voltage ratio (V)	Accuracy level combination	Rated output (VA)	Limit output (VA)	Rated insulation level (kV)
  6000/100	0.2/0.5/1	15/30/60	200	7.2/32/60
  10000/10	3/3P(6P)	50/50		12/42/75
