DXN8D High Voltage Indicator Terminal Type Live Display Device With Interlocking

DXN8D High Voltage Indicator Terminal Type Live Display Device With Interlocking

• Specification
• Drawing

• DXN8D High Voltage Indicator Terminal Type Live Display Device With Interlocking

  This product is used to provide a switchgear equipment circuit voltage information at the installation status to the operator. As a result of its internal circuitry of low-power light-emitting element, which makes low power consumption, more stable performance and higher reliability. For the user test double-loop phase conveniently, indicator(recommend type) panel setting the end of the test phase, meanwhile the frame of indicator (recommend type) shell adopts front end removable. And the user can change the indicator without opening the indicator shell.

  Widely used for indoor 7.2, 12, 24, 40.5kV, frequency of 50Hz high voltage electrical equipment, and supporting the use of the voltage sensor, it can reflect the high voltage live situation, and voltage sensor support, but also to improve the anti-error performance ancillary products.



  Executive standard

  GB25081-2010 HV live display device(VPIS)

  DL/T533-93 condensation and pollution test condition for indoor AC HV switchgear and components

  IEC61958:2000 HV prefabricated switchgear assembly and control assembly-live displaying device



  Features:
  1. Reliability: Inductive (non-contact) sensors, outside the line safety distance to detect whether the line is electrified, and has obvious directionality, high sensitivity, safety and reliability.
  2. Economy: the sensor is not in direct contact with the charged body, no need to do local discharge test during installation and maintenance, simple and convenient, low maintenance costs, long service life.
  3. Full-featured: it has the functions of flash display, self-checking and starting the forced locking circuit, etc., which can really play the role of all-round forced locking.
  4. Adaptability: Various forms, can be widely used in indoor, outdoor, GIS combined electrical appliances and switchgear and other places.

  Applying environment conditions

  1.Environment temperature: upper limit value not more than +40℃,lower limit value not lower than -25℃, special area not lower than -35℃.

  2. Sea level: no more than 1000m.

  3. Atmospheric conditions: RH daily average value not more than 95%, month average value not more than 90%, steam pressure daily average value not more than 2.2kPa, month average value not more than 1.8kPa.

  4. Environment condition: no obvious filth, no flammable, no explosive chemical etcing and salt fog place.

• DXN8D High Voltage Indicator Terminal Type Live Display Device With Interlocking

  Outline installation hole dimension

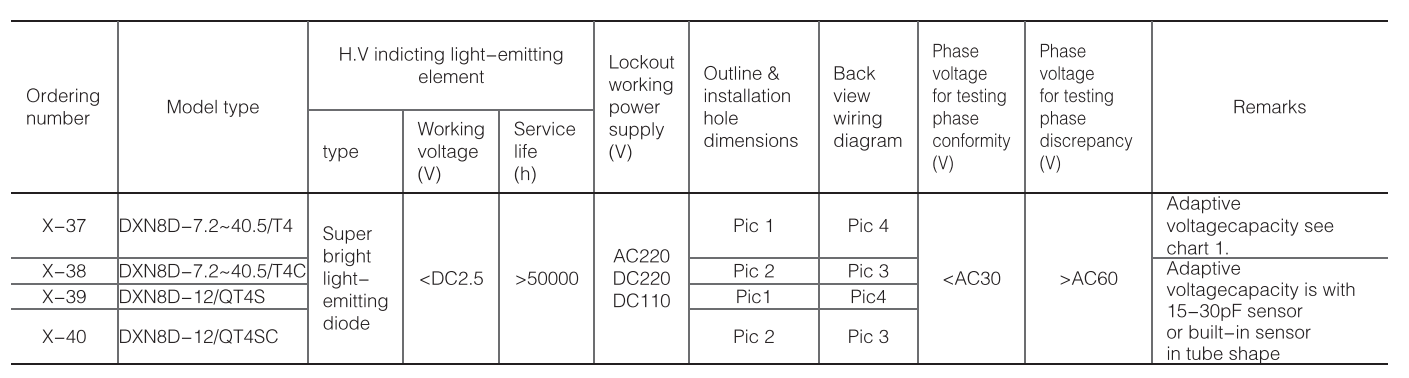

  Voltage indicator selection table



  Indoor HV live display device
