APG High Voltage LYC148 Epoxy resin wall bushing

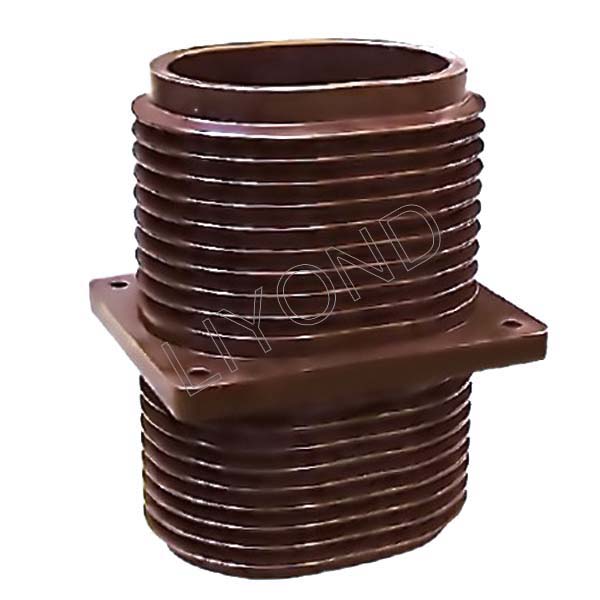

APG high voltage LYC148 epoxy resin wall bushing

• Specification
• Drawing
• PDF Download

• APG high voltage LYC148 epoxy resin wall bushing

  Item No: LYC148

  Features:

  1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.

  2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 35KV and below.

  3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.

  4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

  5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.

  Details:

  Model Name:	TG3-12/140*175*260 Bushing
  Brand:	Liyond
  Application:	High Voltage / Switchgear
  Operation condition	indoor installation
  Color:	brown, red
  Material	epoxy resin
  Product Certification:	CE and ISO 9001:2000
  Rated voltage:	12kV
  MOQ:	50pcs
  Packing:	1. Each one is wrapped with plastic film2. Packed in cartons3.Cartons are sealed in a wooden box4.The cases are bound with iron belts externally
  Loading port:	Shanghai  Port / Ningbo  Port
  Payment terms:	L/C,T/T, Western Union
  Delivery time:	within 15 days, depends on order quantity
  Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification

• APG high voltage LYC148 epoxy resin wall bushing

  Item No: LYC148



  APG high voltage LYC148 epoxy resin wall bushing

  Normal Operation Environment Condition

  1﹑Altitude can’t exceed 1000m，and the altitude of plateau type can’t exceed 3000m

  2 Surrounding temperature ranges from -10℃ to +40℃，and the daily average temperature

  3 Daily average value of Relative humidity can’t exceed 95%，and the monthly average；

  4 There is no any dust﹑smoke﹑pollution of corrosive or flammable air﹑vapor and salt fog

  5 There is no any frequent vibration or bumping in installation place

  6 The product all could run in the case of dew and Ⅱ feculence condition

• Item No: LYC148
