• 0.5KV Low Voltage Single Phase Residual Current Transformer For Indoor Switchgear

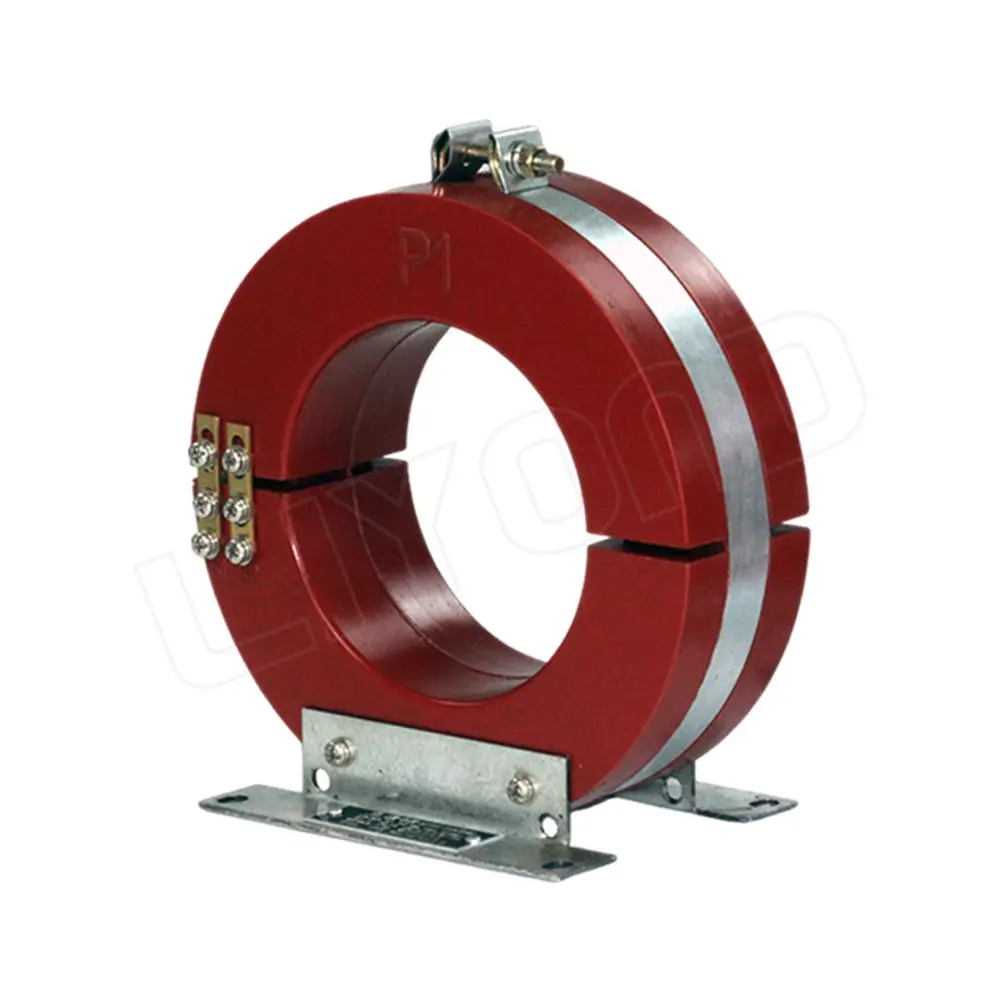

  This LXK series current transformer is indoor type, applied to rated voltage 0.5kV, rated frequency 50-60Hz in the power system, used for the zero sequence overcurrent protection of power system, high voltage three-phase AC generator and motor. The outside diameter of transmission cable is not more than 120MM. This current transformer is divided into two halves, and the resin is poured into a semicircle, then connected with clamps. When installed, the transformer can be divided into two halves, then combined into a whole. The installation is very convenient.

  Operating Condition
  1. Altiude is no more than 1000m.

  2. The maximum change of surrouding temperature is no more than -30°C~+40°C.

  3. Universal product is only used in the area with less than 85% relative humidity.

  4. Installation field had no serious effect transformer insulated, steam, chemical deposition, dust foul and other explosive and corrosive medium, and the field without serious shake and bump.

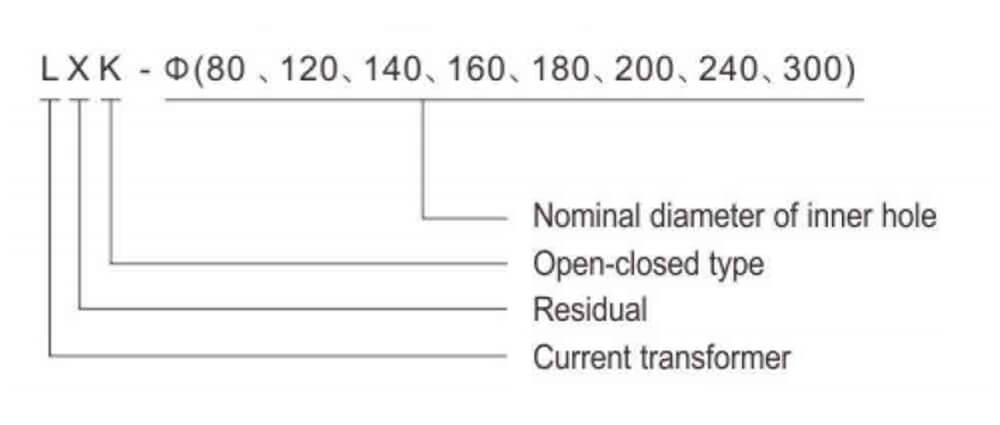

• Model Meaning



  Specification Parameters

  LXK-∅(80, 120, 140, 160, 180, 200, 240, 300)type technical data 1: for residualprotection

  Transformation ratio (A)	Relay type	Connection type of relay coll	Relay scale value	Primary residual current of relay acting (A)	Weight (kg)
  60/1	DD-11/60	Series connection	15×1	2.4-4.5	4.5
  			30×1
  		Parallel connection	15×2	3-5
  			30×2
  	DD-1/60	Series connection	15×1	3-5
  			30×1
  		Parallel connection	15×2	3-6
  			30×2

  (Table 1)

  LXK-∅(80, 120, 140, 160, 180, 200, 240, 300)type technical data 2: mating with microcomputer protection

  Transformation ratio (A)	Accuracy class	Ratde output (VA)
  60/1	5P10	1.0
  75/1		1.5
  100/1		2.5
  150/1		2.5
  200/1		3.75
  300/1		7.5
  150/1		2.0
  200/1		2.5
  300/1		5
  400/1		10
  500/1		12.5
  600/1		15

  (Table 2)

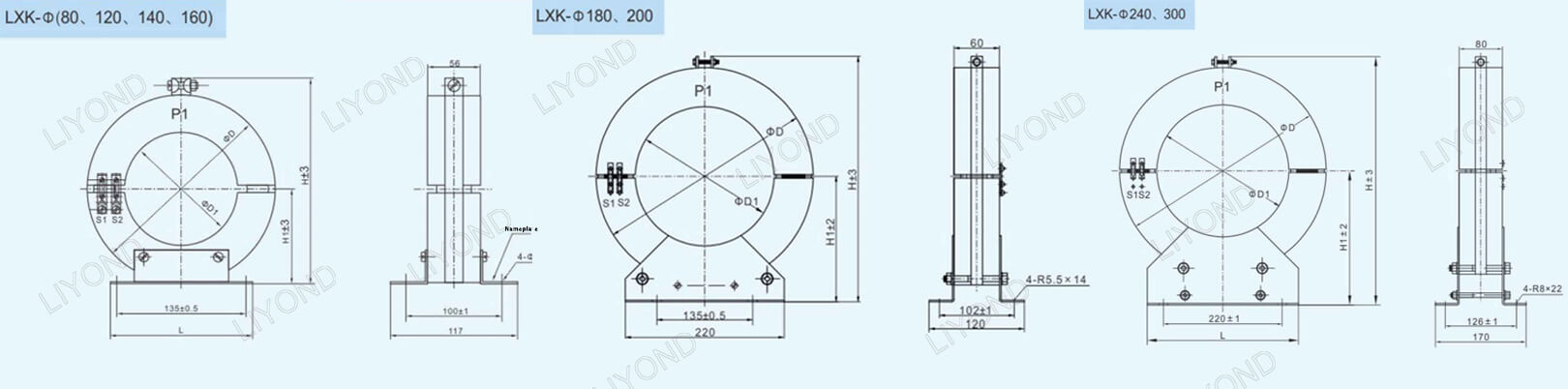

  Drawings Reference
